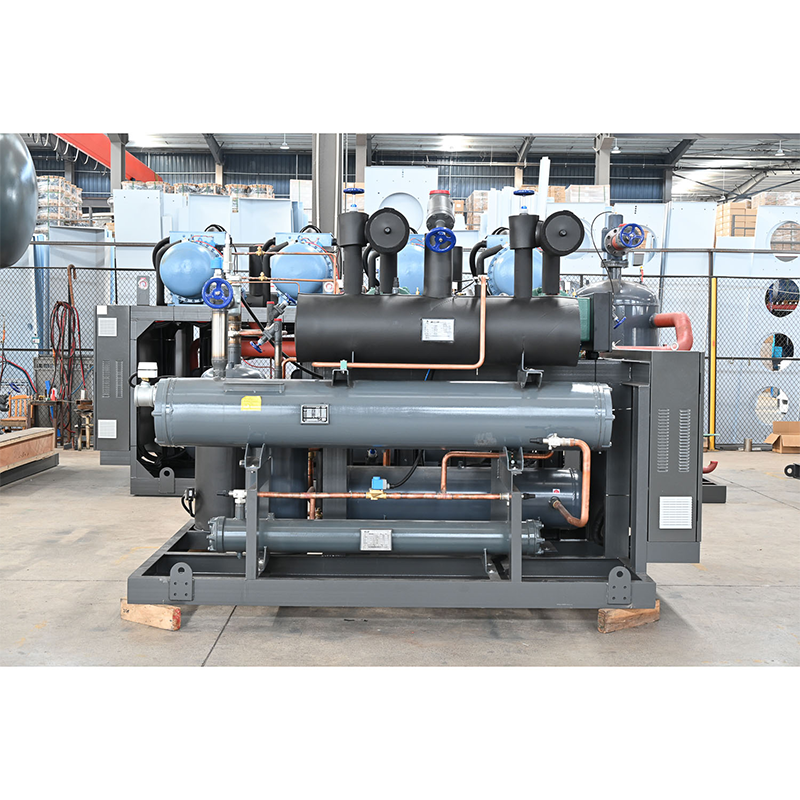

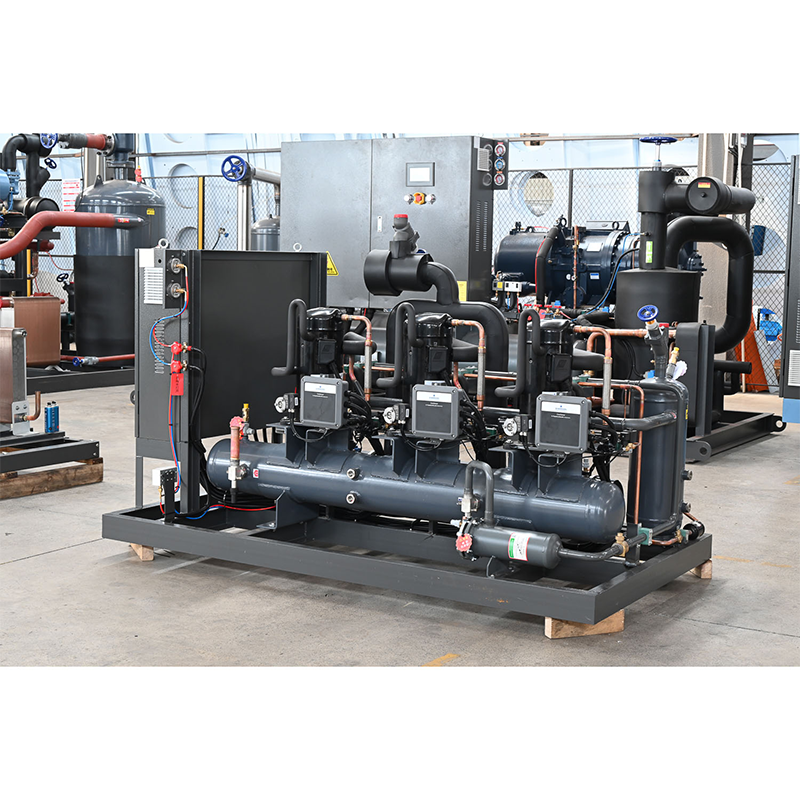

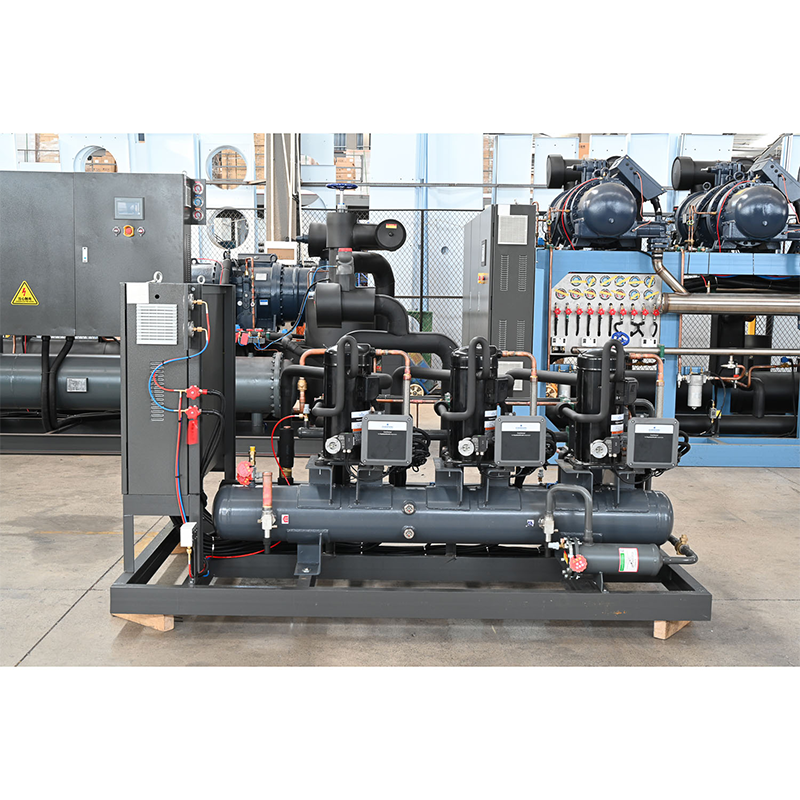

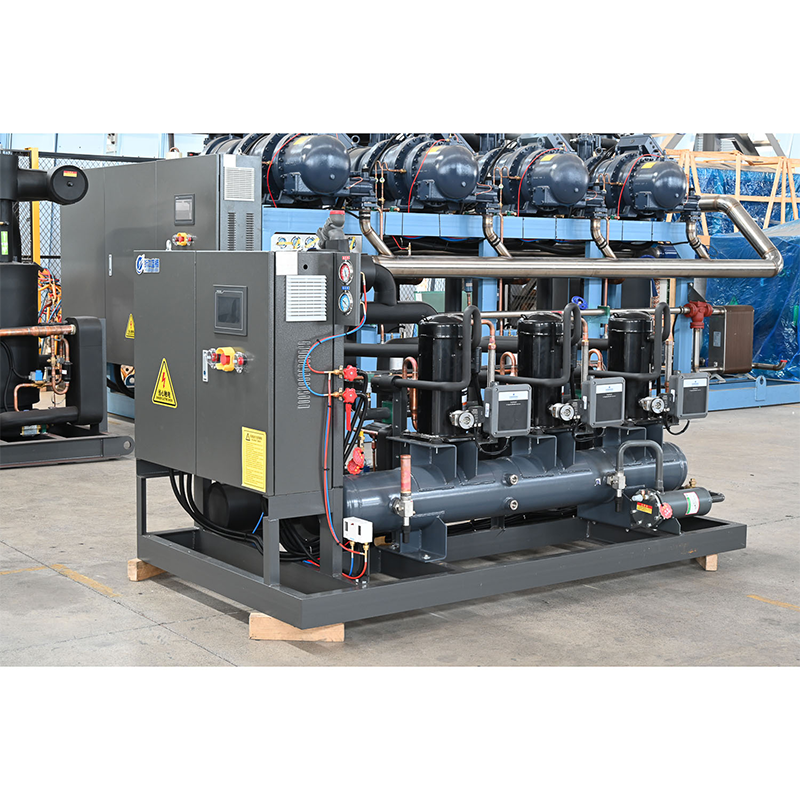

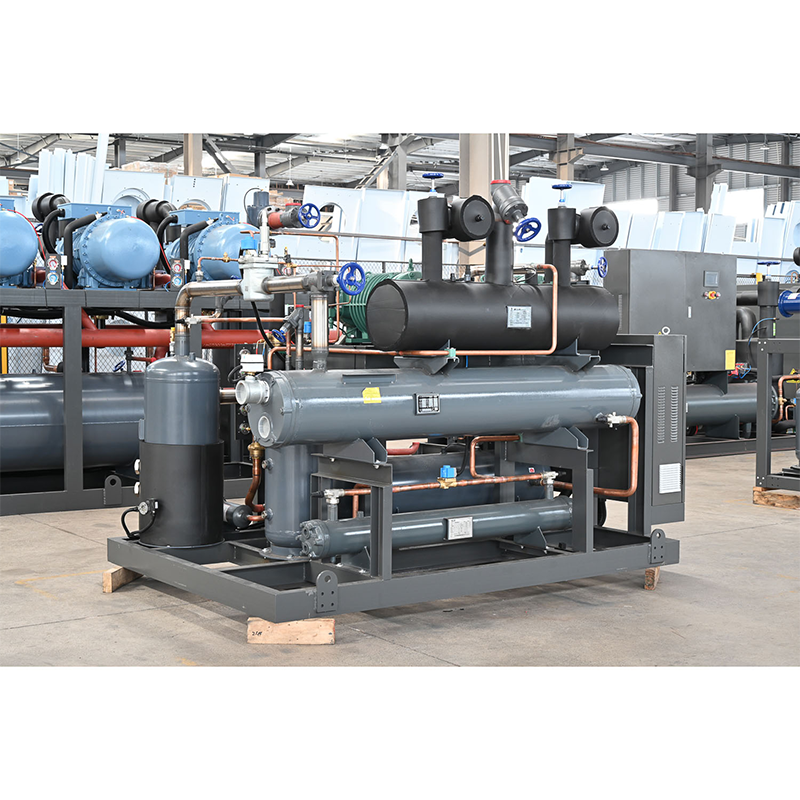

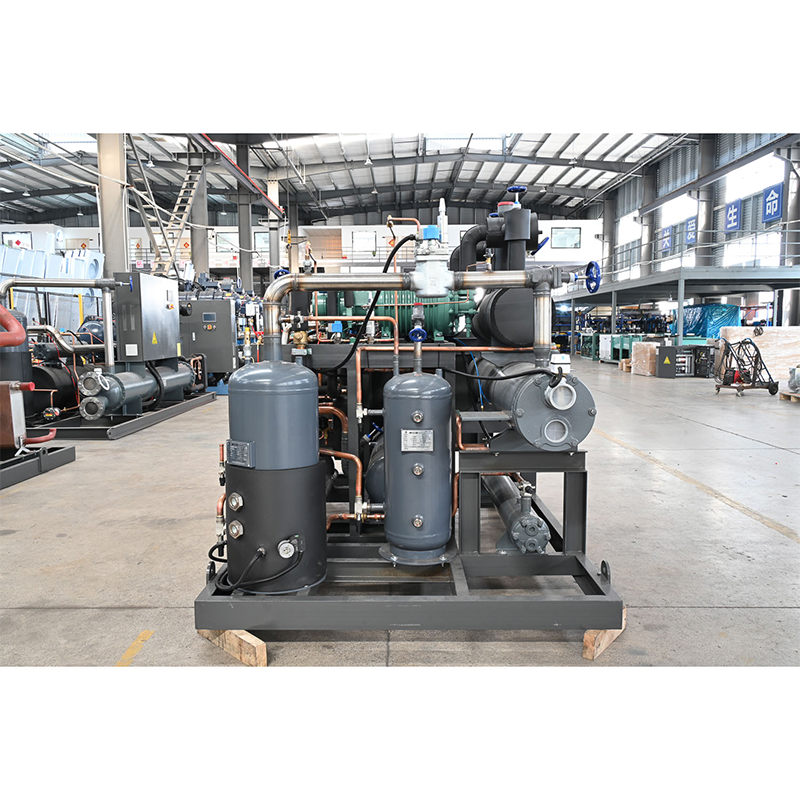

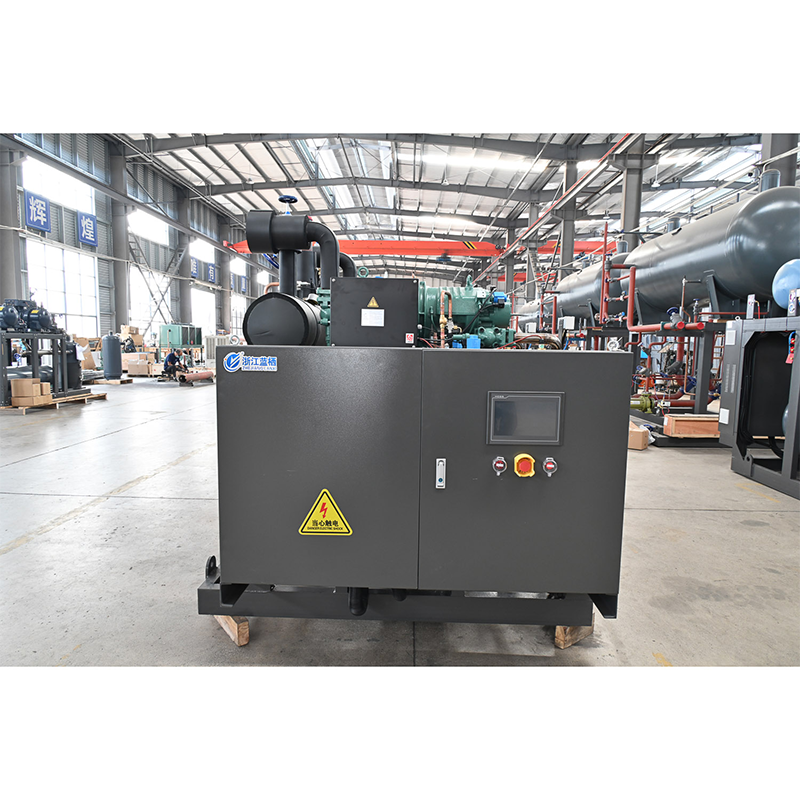

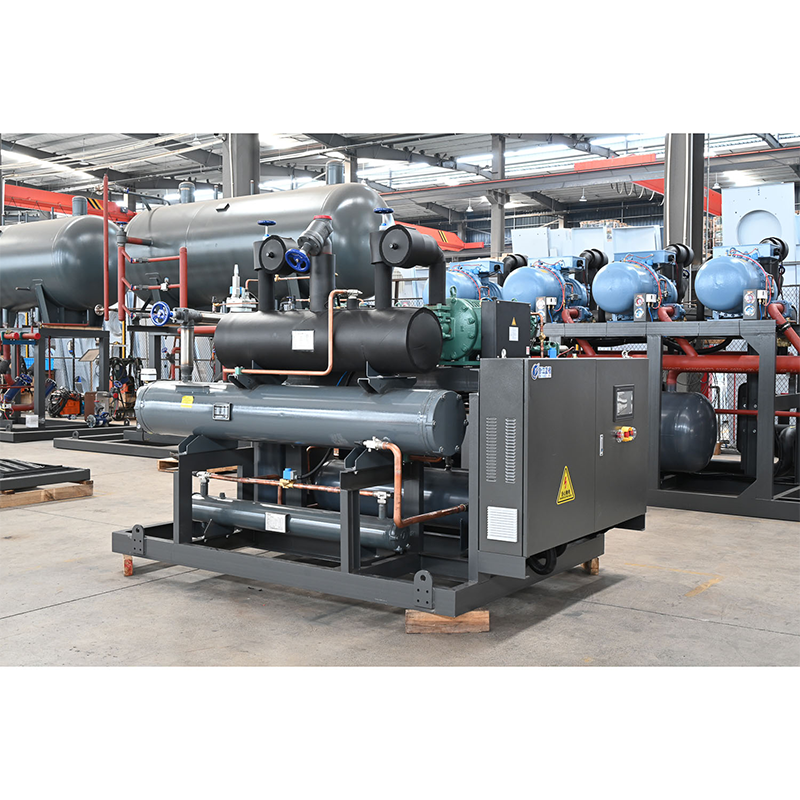

RFC Unit skru suhu rendah
Unit skru suhu rendah RFC ialah sistem penyejukan berkecekapan tinggi yang direka khusus untuk persekitaran suhu rendah. Ia digunakan secara meluas dalam industri seperti makanan, farmaseutikal, bahan kimia, dan elektronik untuk keperluan penyejukan dan penyejukan suhu rendah. Unit ini menggunakan pemampat skru sebagai komponen terasnya, menawarkan kestabilan yang kuat, bunyi yang rendah dan kecekapan yang tinggi. Unit skru suhu rendah siri RFC memberikan prestasi penyejukan yang berterusan dan stabil, memastikan kecekapan dan kebolehpercayaan yang tinggi walaupun dalam keadaan suhu rendah yang melampau.
Pemampat unit ini menggunakan teknologi termaju antarabangsa, memberikan nisbah kecekapan tenaga yang lebih tinggi dan kadar kegagalan yang lebih rendah. Ini memastikan prestasi suhu rendah yang sangat baik sambil mengurangkan penggunaan tenaga, membantu pengguna menjimatkan kos operasi.
Unit skru suhu rendah RFC direka bentuk dengan mengambil kira keramahan alam sekitar, menggunakan penyejuk mesra alam yang mematuhi piawaian perlindungan alam sekitar antarabangsa. Ia juga mempunyai keupayaan permulaan suhu rendah yang kuat dan kebolehsuaian yang luas. Selain itu, unit ini dilengkapi dengan sistem kawalan pintar yang boleh memantau status operasi peralatan dalam masa nyata dan melaraskan parameter operasi secara automatik, memastikan prestasi yang baik di bawah beban yang berbeza-beza.
Untuk meningkatkan umur panjang dan keselamatan, unit skru suhu rendah RFC dilengkapi dengan pelbagai ciri perlindungan keselamatan, seperti perlindungan beban lampau, perlindungan kepanasan melampau pemampat dan perlindungan kekurangan minyak. Langkah-langkah ini berkesan mengurangkan risiko kegagalan yang tidak dijangka dan memastikan operasi peralatan yang stabil.
Pengenalan Parameter Peralatan
Paparan Terperinci
Hubungi Kami
Pengenalan Parameter Peralatan
| Model Unit | Cam.Model (RFC) | Com, Cuartity | Pemeluwapan suhu,(℃) | Suhu Penyejatan《℃) | takungan (L) | Paip bekalan (mm) | Paip sedutan (mm) | Paip Outiet Gas (mm) | cecair paip masuk (mm) | Dimensi(mm) (LxW×H) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasiti Penyejukan/Kuasa lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-30L | SLD120 -30 (30HP) | 1 | 35 | 58.7 | 19.8 | 48.8 | 19.1 | 40.1 | 18.4 | 32.5 | 17.9 | 25.8 | 15.6 | 80 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 55.9 | 24.0 | 46.3 | 22.8 | 37.0 | 21.5 | 29.7 | 20.9 | 23.0 | 20.0 | |||||||||
| 45 | 53.4 | 26.2 | 43.4 | 25.8 | 35.3 | 24.8 | 26.9 | 24.3 | 20.3 | 23.5 | |||||||||
| LXPL-BRFCF2 -60L | 2 | 35 | 117.4 | 39.6 | 97.6 | 38.2 | 80.2 | 368 | 65.0 | 35.8 | 51.6 | 35.2 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2400×1650×1700 | |
| 40 | 111.8 | 48.0 | 92.6 | 45.6 | 74.0 | 43.0 | 59.4 | 41.8 | 46.0 | 40.0 | |||||||||
| 45 | 106.8 | 52.4 | 86.8 | 51.6 | 70.6 | 49.6 | 53.8 | 48.6 | 40.8 | 47.0 | |||||||||
| LXPL-BRFCF3 -90L | 3 | 35 | 176.1 | 59.4 | 146.4 | 57.3 | 120.3 | 55.2 | 97.5 | 53.7 | 77.4 | 52.8 | 200 | Φ45 | Φ89 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 167.7 | 72.0 | 138.9 | 68.4 | 111.0 | 64.5 | 89.1 | 62.7 | 69.0 | 60.0 | |||||||||
| 45 | 160.2 | 78.6 | 130.2 | 77.4 | 105.9 | 74.4 | 80.7 | 72.9 | 61.2 | 70.5 | |||||||||
| LXPL-BRFCF4 -120L | 4 | 35 | 234.8 | 79.2 | 195.2 | 76.4 | 160.4 | 73.6 | 133.0 | 71.6 | 103.2 | 70.4 | 250 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 223.6 | 96.0 | 185.2 | 91.2 | 148.0 | 86.0 | 118.8 | 83.6 | 92.0 | 80.0 | |||||||||
| 45 | 213.6 | 104.8 | 173.6 | 103.2 | 1412 | 99.2 | 107.6 | 97.2 | 81.6 | 94.0 | |||||||||
| LXPL-RFCF-40L | SLD140 -40 (40HP) | 1 | 35 | 67.1 | 22.7 | 55.8 | 21.8 | 45.9 | 21.1 | 37.1 | 20.5 | 29.5 | 20.1 | 100 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 64.0 | 27.5 | 53.0 | 26.1 | 42.3 | 24.6 | 34.0 | 23.9 | 26.3 | 22.9 | |||||||||
| 45 | 61.1 | 30.0 | 49.6 | 29.6 | 40.4 | 28.4 | 30.8 | 27.9 | 23.4 | 26.9 | |||||||||
| LXPL-BRFCF2 -80L | 2 | 35 | 134.2 | 45.4 | 111.6 | 43.6 | 91.8 | 42.2 | 74.2 | 41.0 | 59.0 | 40.2 | 200 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 128.0 | 55.0 | 106.0 | 52.2 | 84.6 | 49.2 | 68.0 | 47.8 | 56.2 | 45.8 | |||||||||
| 45 | 122.2 | 60.0 | 99.2 | 59.2 | 80.8 | 56.8 | 61.6 | 55.8 | 46.8 | 53.8 | |||||||||
| LXPL-BRFCF3 -120L | 3 | 35 | 201.3 | 68.1 | 167.4 | 65.4 | 137.7 | 63.3 | 111.3 | 61.5 | 88.5 | 60.3 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 192.0 | 82.5 | 159.0 | 78.3 | 126.9 | 73.8 | 102.0 | 71.7 | 78.9 | 68.7 | |||||||||
| 45 | 183.3 | 90.0 | 148.8 | 88.8 | 121.2 | 85.2 | 92.4 | 83.7 | 70.2 | 80.7 | |||||||||
| LXPL-BRFCF4 -160L | 4 | 35 | 256.0 | 110.0 | 212.0 | 104.4 | 169.2 | 98.4 | 136.0 | 95.6 | 105.2 | 91.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 201.3 | 68.1 | 167.4 | 65.4 | 137.7 | 63.3 | 111.3 | 61.5 | 88.5 | 60.3 | |||||||||
| 45 | 244.4 | 120.0 | 198.4 | 118.4 | 161.6 | 113.6 | 123.2 | 111.6 | 93.6 | 107.6 | |||||||||
| LXPL-RFCF-50L | SLD190 -50 (50HP) | 1 | 35 | 94.5 | 32.0 | 78.6 | 30.7 | 64.6 | 29.7 | 53.2 | 28.9 | 41.6 | 28.3 | 150 | Φ28 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 90.1 | 38.7 | 74.6 | 36.7 | 59.5 | 34.6 | 47.8 | 33.6 | 37.0 | 32.3 | |||||||||
| 45 | 85.9 | 42.2 | 69.8 | 41.6 | 56.9 | 39.9 | 43.3 | 39.2 | 32.9 | 37.8 | |||||||||
| LXPL-BRFCF2 -100L | 2 | 35 | 189.0 | 64.0 | 157.2 | 61.4 | 1292 | 59.4 | 104.6 | 57.8 | 83.2 | 56.6 | 200 | Φ35 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 180.2 | 77.4 | 149.2 | 73.4 | 119.0 | 692 | 95.6 | 67.2 | 74.0 | 64.6 | |||||||||
| 45 | 171.8 | 84.4 | 139.6 | 83.2 | 113.8 | 798 | 86.6 | 78.4 | 65.8 | 756 | |||||||||
| LXPL-BRFCF3 -150L | 3 | 35 | 283.5 | 96.0 | 235.8 | 92.1 | 193.8 | 89.1 | 156.9 | 86.7 | 124.8 | 84.9 | 250 | Φ45 | Φ108 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 270.3 | 116.1 | 223.8 | 110.1 | 178.5 | 103.8 | 143.4 | 100.8 | 111.0 | 96.9 | |||||||||
| 45 | 257.7 | 126.6 | 209.4 | 124.8 | 170.7 | 119.7 | 129.9 | 117.6 | 98.7 | 113.4 | |||||||||
| LXPL-BRFCF4 -200L | 4 | 35 | 378.0 | 128.0 | 314.4 | 122.8 | 258.4 | 118.8 | 209.2 | 115.6 | 166.4 | 113.2 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 360.4 | 154.8 | 298.4 | 146.8 | 238.0 | 138.4 | 191.2 | 134.4 | 148.0 | 129.2 | |||||||||
| 45 | 343.6 | 166.8 | 279.2 | 166.4 | 227.6 | 159.6 | 173.2 | 156.8 | 131.6 | 151.2 | |||||||||
| Model Unit | Com.Model (RFC) | Com. Cuartity | Pemeluwapan temp. (℃) | Suhu Penyejatan. (℃) | takungan (L) | Paip bekalan (mm) | Paip sedutan (mm) | Paip Outiet Gas (mm) | cecair paip masuk (mm) | Dimensi(mm) (L×W×H) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasiti Penyejukan/Kuasa lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-60L | SLD210 -60 (60HP) | 1 | 35 | 104.4 | 35.3 | 86.8 | 34.0 | 71.3 | 32.8 | 57.8 | 31.9 | 45.9 | 31.2 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 99.5 | 42.8 | 82.5 | 40.5 | 65.8 | 38.3 | 529 | 37.1 | 40.9 | 35.7 | |||||||||
| 45 | 95.0 | 46.7 | 77.2 | 46.0 | 62.9 | 44.1 | 47.8 | 433 | 36.4 | 41.8 | |||||||||
| LXPL-BRFCF2 -120L | 2 | 35 | 208.8 | 70.6 | 173.6 | 68.0 | 142.6 | 65.6 | 115.6 | 63.8 | 91.8 | 624 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 199.0 | 85.6 | 165.0 | 81.0 | 131.6 | 76.6 | 105.8 | 74.2 | 81.8 | 71.4 | |||||||||
| 45 | 190.0 | 93.4 | 154.4 | 92.0 | 1258 | 88.2 | 956 | 86.6 | 72.8 | 836 | |||||||||
| LXPL-BRFCF3 -180L | 3 | 35 | 313.2 | 105.9 | 260.4 | 102.0 | 213.9 | 98.4 | 173.4 | 95.7 | 137.7 | 936 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 298.5 | 128.4 | 247.5 | 121.5 | 197.4 | 114.9 | 158.7 | 111.3 | 122.7 | 107.1 | |||||||||
| 45 | 285.0 | 140.1 | 231.6 | 138.0 | 188.7 | 1323 | 143.4 | 129.9 | 109.2 | 125.4 | |||||||||
| LXPL-BRFCF4 -240L | 4 | 35 | 417.6 | 141.2 | 347.2 | 136.0 | 285.2 | 131.2 | 231.2 | 127.6 | 1836 | 124.8 | 300 | Φ57 | Φ108 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 398.0 | 171.2 | 330.0 | 162.0 | 263.2 | 153.2 | 211.6 | 148.4 | 1636 | 1428 | |||||||||
| 45 | 380.0 | 186.8 | 308.8 | 184.0 | 251.6 | 1764 | 191.2 | 173.2 | 1456 | 167.2 | |||||||||
| LXPL-RFCF-70L | SLD230 -70 (70HP) | 1 | 35 | 116.8 | 39.5 | 97.2 | 38.0 | 79.8 | 36.7 | 64.7 | 35.7 | 51.4 | 35.0 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 111.4 | 47.9 | 82.3 | 45.4 | 73.7 | 42.8 | 592 | 41.5 | 45.7 | 39.9 | |||||||||
| 45 | 106.3 | 52.2 | 86.4 | 51.5 | 70.4 | 49.4 | 53.5 | 48.5 | 40.7 | 46.8 | |||||||||
| LXPL-BRFCF2 -140L | 2 | 35 | 233.6 | 79.0 | 194.4 | 76.0 | 159.6 | 73.4 | 129.4 | 71.4 | 1028 | 70.0 | 250 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 222.8 | 95.8 | 174.6 | 90.8 | 147.4 | 85.6 | 118.4 | 83.0 | 91.4 | 79.8 | |||||||||
| 45 | 212.6 | 104.4 | 172.8 | 103.0 | 140.8 | 98.8 | 107.0 | 97.0 | 81.4 | 93.6 | |||||||||
| LXPL-BRFCF3 -210L | 3 | 35 | 350.4 | 118.5 | 291.6 | 114.0 | 239.4 | 110.1 | 194.1 | 107.1 | 154.2 | 105.0 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000×1800×1700 | |
| 40 | 334.2 | 143.7 | 276.9 | 136.5 | 221.1 | 128.4 | 177.6 | 124.5 | 137.1 | 119.7 | |||||||||
| 45 | 318.9 | 156.6 | 259.2 | 154.5 | 211.2 | 148.2 | 160.5 | 145.5 | 122.1 | 140.4 | |||||||||
| LXPL-BRFCF4 -280L | 4 | 35 | 467.2 | 158.0 | 388.8 | 152.0 | 319.2 | 146.8 | 258.8 | 142.8 | 205.6 | 140.0 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 445.6 | 191.6 | 369.2 | 181.6 | 294.8 | 171.2 | 236.8 | 166.0 | 1828 | 159.6 | |||||||||
| 45 | 425.2 | 208.8 | 3456 | 206.0 | 281.6 | 197.6 | 214.0 | 194.0 | 1628 | 187.2 | |||||||||
| LXPL-RFCF-75L | SLD250 -75 (75HP) | 1 | 35 | 124.3 | 42.0 | 103.4 | 40.4 | 84.9 | 39.0 | 68.8 | 38.0 | 54.7 | 37.2 | 200 | Φ35 | Φ76 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 118.5 | 50.9 | 98.2 | 48.3 | 78.4 | 45.6 | 62.9 | 44.2 | 48.6 | 42.5 | |||||||||
| 45 | 113.1 | 55.5 | 91.9 | 54.8 | 74.9 | 52.5 | 57.0 | 51.6 | 43.3 | 49.7 | |||||||||
| LXPL-BRFCF2 -150L | 2 | 35 | 248.6 | 84.0 | 206.8 | 80.8 | 1698 | 78.0 | 137.6 | 76.0 | 109.4 | 74.4 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 237.0 | 1018 | 196.4 | 96.6 | 1568 | 91.2 | 1258 | 88.4 | 97.2 | 85.0 | |||||||||
| 45 | 226.2 | 111.0 | 183.8 | 109.6 | 149.8 | 105.0 | 114.0 | 103.2 | 86.6 | 99.4 | |||||||||
| LXPL-BRFCF3 -225L | 3 | 35 | 372.9 | 126.0 | 310.2 | 121.2 | 254.7 | 117.0 | 206.4 | 114.0 | 164.1 | 111.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 355.5 | 152.7 | 294.6 | 144.9 | 235.2 | 136.8 | 188.7 | 132.6 | 145.8 | 127.5 | |||||||||
| 45 | 339.3 | 166.5 | 375.7 | 164.4 | 244.7 | 157.5 | 171.0 | 154.8 | 129.9 | 149.1 | |||||||||
| LXPL-BRFCF4 -300L | 4 | 35 | 497.2 | 168.0 | 413.6 | 161.6 | 339.6 | 156.0 | 275.3 | 152.0 | 218.8 | 148.8 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 474.0 | 203.6 | 392.8 | 193.2 | 313.6 | 182.4 | 251.6 | 176.8 | 194.4 | 170.0 | |||||||||
| 45 | 452.4 | 222.0 | 367.6 | 219.2 | 299.6 | 210.0 | 228.0 | 2064 | 173.2 | 198.8 | |||||||||
| Model Unit | Cam.Model (RFC) | Com, Cuartity | Pemeluwapan temp. (℃) | Suhu Penyejatan. (℃) | takunganr (L) | Paip bekalan (mm) | sedutan paip (mm) | Outiet Gas paip (mm) | cecair paip masuk (mm) | Dimensi(mm) (LxW×H) | |||||||||
| -20 | -25 | -30 -35 | -40 | ||||||||||||||||
| Kapasiti Penyejukan/Input Kuasa(kw) | |||||||||||||||||||
| LXPL-RFCF-80L | SLD290 -80 (80HP) | 1 | 35 | 144.7 | 48.9 | 120.3 | 47.1 | 98.9 | 45.4 | 80.1 | 44.2 | 63.7 | 43.3 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 137.9 | 59.3 | 114.3 | 56.2 | 91.2 | 53.0 | 73.3 | 51.4 | 56.6 | 49.4 | |||||||||
| 45 | 131.6 | 64.7 | 106.9 | 63.7 | 87.1 | 61.1 | 66.3 | 60.0 | 50.4 | 57.9 | |||||||||
| LXPL-BRFCF2 -180L | 2 | 35 | 289.4 | 97.8 | 240.6 | 94.2 | 197.8 | 90.8 | 160.2 | 88.4 | 127.4 | 86.6 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2000×1800 | |
| 40 | 275.8 | 97.8 | 240.6 | 94.2 | 197.8 | 90.8 | 146.6 | 102.8 | 113.2 | 98.8 | |||||||||
| 45 | 263.2 | 129.4 | 213.8 | 127.4 | 174.2 | 122.2 | 132.6 | 120.0 | 100.8 | 115.8 | |||||||||
| LXPL-BRFCF3 -240L | 3 | 35 | 434.1 | 146.7 | 360.9 | 141.3 | 196.7 | 136.2 | 240.3 | 132.6 | 191.1 | 129.9 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 413.7 | 177.9 | 342.9 | 168.6 | 273.6 | 159.0 | 219.9 | 154.2 | 169.8 | 148.2 | |||||||||
| 45 | 394.8 | 194.1 | 320.7 | 191.1 | 261.3 | 183.3 | 198.9 | 180.0 | 151.2 | 173.7 | |||||||||
| XPL-BRFCF4 -320L | 4 | 35 | 578.8 | 195.6 | 481.2 | 188.4 | 395.6 | 181.6 | 320.4 | 176.8 | 254.8 | 173.2 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 551.6 | 237.2 | 457.2 | 224.8 | 364.8 | 212.0 | 293.2 | 205.6 | 226.4 | 197.6 | |||||||||
| 45 | 526.4 | 258.8 | 427.6 | 254.8 | 348.4 | 244.4 | 265.2 | 240.0 | 201.6 | 231.6 | |||||||||
| LXPL-RFCF -100L | SLD350 -100 (100HP) | 1 | 35 | 173.5 | 58.7 | 144.3 | 56.4 | 118.6 | 54.5 | 96.0 | 53.1 | 26.3 | 51.9 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 165.4 | 71.1 | 137.1 | 67.4 | 109.4 | 63.6 | 87.9 | 61.7 | 67.9 | 59.3 | |||||||||
| 45 | 157.9 | 77.5 | 128.2 | 76.4 | 104.5 | 73.3 | 79.5 | 72.0 | 60.4 | 69.4 | |||||||||
| LXPL-BRFCF2 -200L | 2 | 35 | 347.0 | 117.4 | 288.6 | 112.8 | 237.2 | 109.0 | 192.0 | 106.2 | 152.6 | 103.8 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2200×1800 | |
| 40 | 330.8 | 142.2 | 274.2 | 134.8 | 218.8 | 127.2 | 175.8 | 123.4 | 135.8 | 118.6 | |||||||||
| 45 | 315.8 | 155.0 | 256.4 | 152.8 | 209.0 | 146.6 | 159.0 | 144.0 | 120.8 | 138.8 | |||||||||
| LXPL-BRFCF3 -300L | 3 | 35 | 520.5 | 176.1 | 432.9 | 169.2 | 3558 | 163.5 | 288.0 | 159.3 | 228.9 | 155.7 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 496.2 | 213.3 | 411.3 | 202.2 | 328.2 | 190.8 | 263.7 | 185.1 | 203.7 | 177.9 | |||||||||
| 45 | 473.7 | 232.5 | 384.6 | 229.2 | 313.5 | 219.9 | 238.5 | 216.0 | 181.2 | 208.2 | |||||||||
| LXPL-BRFCF4 -400L | 4 | 35 | 694.0 | 234.8 | 577.2 | 225.6 | 474.4 | 218.0 | 384.0 | 212.4 | 30.52 | 2076 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 661.6 | 284.4 | 548.4 | 269.6 | 437.6 | 2932 | 351.6 | 216.8 | 271.6 | 237.2 | |||||||||
| 45 | 631.6 | 310.0 | 512.8 | 305.6 | 418.0 | 293.2 | 318.0 | 288.0 | 241.6 | 277.6 | |||||||||
| LXPL-RFCF -125L | SLD420 -125 (125HP) | 1 | 35 | 202.3 | 68.4 | 168.2 | 658 | 138.2 | 63.5 | 111.9 | 61.8 | 89.0 | 60.5 | 250 | Φ57 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 |
| 40 | 192.8 | 82.9 | 1598 | 785 | 127.5 | 74.1 | 102.4 | 71.9 | 79.2 | 69.1 | |||||||||
| 45 | 184.0 | 90.4 | 149.5 | 89.1 | 121.8 | 85.5 | 92.7 | 83.9 | 70.4 | 80.9 | |||||||||
| LXPL-BRFCF2 -250L | 2 | 35 | 404.6 | 1368 | 336.4 | 131.6 | 276.4 | 127.0 | 2238 | 123.6 | 178.0 | 121.0 | 400 | Φ76 | Φ108 | Φ89 | Φ76 | 2600×2000×1900 | |
| 40 | 385.6 | 1658 | 319.6 | 157.0 | 255.0 | 148.2 | 204.8 | 143.8 | 158.4 | 138.2 | |||||||||
| 45 | 368.0 | 180.8 | 299.0 | 178.2 | 243.6 | 171.0 | 158.4 | 167.8 | 140.8 | 161.8 | |||||||||
| LXPL-BRFCF3 -370L | 3 | 35 | 606.9 | 205.2 | 504.6 | 197.4 | 414.6 | 190.5 | 335.7 | 158.4 | 267.0 | 181.5 | 500 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 578.4 | 248.7 | 479.4 | 235.5 | 382.5 | 222.3 | 307.2 | 215.7 | 218.7 | 207.3 | |||||||||
| 45 | 552.0 | 271.2 | 448.5 | 267.3 | 365.4 | 256.5 | 378.1 | 251.7 | 211.2 | 242.7 | |||||||||
| LXPL-BRFCF4 -500L | 4 | 35 | 809.2 | 273.6 | 672.8 | 263.2 | 552.8 | 254.0 | 447.6 | 247.2 | 356.0 | 242.0 | 600 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 771.2 | 331.6 | 639.2 | 314.0 | 510.0 | 296.4 | 409.6 | 287.6 | 316.8 | 276.4 | |||||||||
| 45 | 736.0 | 361.6 | 598.0 | 356.4 | 487.2 | 342.0 | 370.8 | 355.6 | 281.6 | 323.6 | |||||||||
| Model Unit | Com.Model (RFC) | Com. Cuartity | Pemeluwapan temp. (℃) | Suhu Penyejatan. (℃) | takunganr (L) | Bekalan paip (mm) | sedutan paip (mm) | Paip Outiet Gas (mm) | cecair paip masuk (mm) | Dimensi(mm) (L×W×H) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasiti Penyejukan/Input Kuasa(kw) | |||||||||||||||||||
| LXPL-RFCF -140L | SLD470 -140 (140HP) | 1 | 35 | 228.5 | 77.3 | 190.1 | 74.3 | 156.2 | 71.7 | 126.5 | 69.9 | 100.6 | 68.4 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 |
| 40 | 217.9 | 93.7 | 180.6 | 88.7 | 144.1 | 83.8 | 115.7 | 81.2 | 894 | 78.1 | |||||||||
| 45 | 207.9 | 102.1 | 168.9 | 100.7 | 137.6 | 96.6 | 104.7 | 94.8 | 79.6 | 91.5 | |||||||||
| LXPL-BRFCF2 -280L | 2 | 35 | 457.0 | 154.6 | 380.2 | 148.6 | 312.4 | 143.4 | 253.0 | 1398 | 201.2 | 136.8 | 400 | Φ57 | Φ108 | Φ89 | Φ76 | 2600×2000×1900 | |
| 40 | 4358 | 187.4 | 361.2 | 77.4 | 288.2 | 167.6 | 231.4 | 1624 | 178.8 | 156.2 | |||||||||
| 45 | 4158 | 204.2 | 337.8 | 201.4 | 275.2 | 193.2 | 209.4 | 1896 | 159.2 | 183.0 | |||||||||
| LXPL-BRFCF3 -420L | 3 | 35 | 685.5 | 231.9 | 570.3 | 222.9 | 468.6 | 213.3 | 379.5 | 209.7 | 301.8 | 2052 | 600 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 653.7 | 281.1 | 541.8 | 266.1 | 432.3 | 251.4 | 346.5 | 243.6 | 268.2 | 234.3 | |||||||||
| 45 | 623.7 | 306.3 | 506.7 | 302.1 | 412.8 | 289.8 | 314.1 | 284.4 | 238.8 | 274.5 | |||||||||
| LXPL-BRFCF4 -560L | 4 | 35 | 914.0 | 309.2 | 760.4 | 297.2 | 624.8 | 286.8 | 506.0 | 279.6 | 402.4 | 273.6 | 800 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 871.6 | 374.8 | 722.4 | 354.8 | 576.4 | 335.2 | 462.8 | 334.8 | 357.6 | 312.4 | |||||||||
| 45 | 831.6 | 408.4 | 675.6 | 402.8 | 550.4 | 386.4 | 418.8 | 379.2 | 318.4 | 366.0 | |||||||||
| LXPL-RFCF -160L | SLD520 -160 (160HP) | 1 | 35 | 2528 | 85.5 | 210.3 | 82.2 | 172.8 | 79.4 | 139.9 | 77.3 | 111.2 | 75.7 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1700×1800 |
| 40 | 241.0 | 103.6 | 199.7 | 98.2 | 159.4 | 92.7 | 128.1 | 89.9 | 98.9 | 86.4 | |||||||||
| 45 | 230.0 | 113.0 | 186.9 | 111.4 | 152.3 | 106.9 | 115.9 | 104.9 | 88.1 | 101.2 | |||||||||
| LXPL-BRFCF2 -320L | 2 | 35 | 505.6 | 171.0 | 420.6 | 164.4 | 345.6 | 158.8 | 279.8 | 154.6 | 222.4 | 151.4 | 500 | Φ76 | Φ133 | Φ89 | Φ76 | 3000×1800×1800 | |
| 40 | 482.0 | 202.7 | 399.4 | 196.4 | 318.8 | 185.4 | 1562 | 179.8 | 197.8 | 172.8 | |||||||||
| 45 | 460.0 | 226.0 | 373.8 | 222.8 | 304.6 | 213.8 | 231.8 | 209.8 | 176.2 | 202.4 | |||||||||
| LXPL-BRFCF3 -480L | 3 | 35 | 758.4 | 256.5 | 630.9 | 246.6 | 518.4 | 328.2 | 419.7 | 231.9 | 333.6 | 227.1 | 600 | Φ89 | Φ159 | Φ108 | Φ89 | 4100×2100×2500 | |
| 40 | 723.0 | 310.8 | 599.1 | 294.6 | 478.2 | 370.8 | 384.3 | 269.7 | 296.7 | 259.2 | |||||||||
| 45 | 690.0 | 339.0 | 560.7 | 334.2 | 4569 | 320.7 | 347.7 | 314.7 | 264.3 | 303.6 | |||||||||
| LXPL-BRFCF4 -640L | 4 | 35 | 1011.2: | 342..0 | 841.2 | 328.8 | 691.2 | 317.6 | 559.6 | 309.2 | 444.8 | 302.8 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4900×2300×2700 | |
| 40 | 964.0 | 414.4 | 798.8 | 392.8 | 637.6 | 370.8 | 512.4 | 3596 | 395.6 | 345.6 | |||||||||
| 45 | 920.0 | 452.0 | 747.6 | 445.6 | 6092 | 426.7 | 463.6 | 4196 | 352.4 | 404.8 | |||||||||
| LXPL-RFCF -200L | SLD640 -200 (200HP) | 1 | 35 | 317.3 | 107.3 | 263.9 | 1032 | 2168 | 99.6 | 175.6 | 97.0 | 139.6 | 95.0 | 300 | Φ57 | Φ108 | Φ76 | Φ76 | 2400×1700×1800 |
| 40 | 302.5 | 130.0 | 250.7 | 123.2 | 200.0 | 116.3 | 160.7 | 112.8 | 124.2 | 108.4 | |||||||||
| 45 | 288.6 | 141.8 | 234.5 | 139.8 | 191.1 | 134.1 | 145.4 | 131.7 | 110.5 | 127.0 | |||||||||
| LXPL-BRFCF2 -400L | 2 | 35 | 634.6 | 214.6 | 527.6 | 206.4 | 433.6 | 1992 | 351.2 | 194.0 | 279.2 | 190.0 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 3000×1800×1800 | |
| 40 | 605.0 | 260.0 | 501.4 | 246.4 | 400.0 | 232.6 | 321.4 | 225.6 | 248.4 | 216.8 | |||||||||
| 45 | 577.2 | 283.6 | 469.0 | 2796 | 382.2 | 268.2 | 321.4 | 2634 | 221.0 | 254.0 | |||||||||
| LXPL-BRFCF3 -600L | 3 | 35 | 951.9 | 321.9 | 791.7 | 309.6 | 650.4 | 298.8 | 526.8 | 291.0 | 418.8 | 285.0 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | |
| 40 | 907.5 | 390.0 | 752.1 | 369.6 | 600.0 | 348.9 | 482.1 | 338.4 | 372.6 | 325.2 | |||||||||
| 45 | 865.8 | 425.4 | 703.5 | 419.4 | 573.3 | 402.3 | 436.2 | 395.1 | 331.5 | 381.0 | |||||||||
| LXPL-BRFCF4 -B00L | 4 | 35 | 1269.2 | 429.2 | 1055.6 | 412.8 | 867.2 | 398.4 | 702.4 | 388.0 | 558.4 | 380.0 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | |
| 40 | 1210.0 | 520.0 | 1002.8 | 492.8 | 800.0 | 465.2 | 642.8 | 451.2 | 496.8 | 433.6 | |||||||||
| 45 | 1154.4! | 567.2 | 938.0 | 559.2 | 764.4 | 536.4 | 581.6 | 526.8 | 442.0 | 508.0 | |||||||||
Paparan Terperinci
Hubungi Kami
TENTANG KAMI
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Sebagai China RFC Unit skru suhu rendah Pembekal dan RFC Unit skru suhu rendah Kilang,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. mengkhusus dalam penyelesaian penyejukan yang cekap, hijau, dan mampan. Dengan memanfaatkan produk berkualiti tinggi dan teknologi inovatif, kami melayani sektor makanan, farmaseutikal, kimia, dan logistik rantaian sejuk, mencipta sistem yang cekap tenaga dan mesra alam untuk pelanggan kami serta memupuk pembangunan saling menguntungkan untuk industri dan alam sekitar.
Sijil Kepujian
Berita
-
Masuk ke bilik simpanan sejuk dan rasakan udara berhampiran pintu. Jika satu sudut lebih panas daripada yang lain, atau suhu melayang ke atas setiap petang, penyejuk udara industri yang dipasang di dalam bilik biasanya merupakan tempa...
BACA LANJUT -
Apabila loji pemprosesan makanan di kawasan kekurangan air menilai pilihan penyejukannya, pilihan kondenser sering memutuskan sama ada projek itu diluluskan. Kondenser yang disejukkan udara menghilangkan solekan air penyejuk sepenuhny...
BACA LANJUT -
Semasa mencari a pembuat penyejat dan pemeluwap , Penyejukan Lanxi sememangnya bernilai perhatian anda. Dengan kelebihan tersendiri dalam reka bentuk dan pengeluaran kondenser, Lanxi Refrigeration menyampaikan pemeluwap yang menam...
BACA LANJUT
HUBUNGI KAMI
PAUTAN PANTAS
MAKLUMAT HUBUNGAN
- E-mel: [email protected]
- Telefon: +86-15258555916
- Alamat: 301 Punan Avenue, Pukou Street, Shengzhou City, Shaoxing City, Zhejiang Province.China
Hak Cipta © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Hak Cipta Terpelihara.
浙ICP备2022034605号-1
Borong RFC Unit skru suhu rendah Kilang
