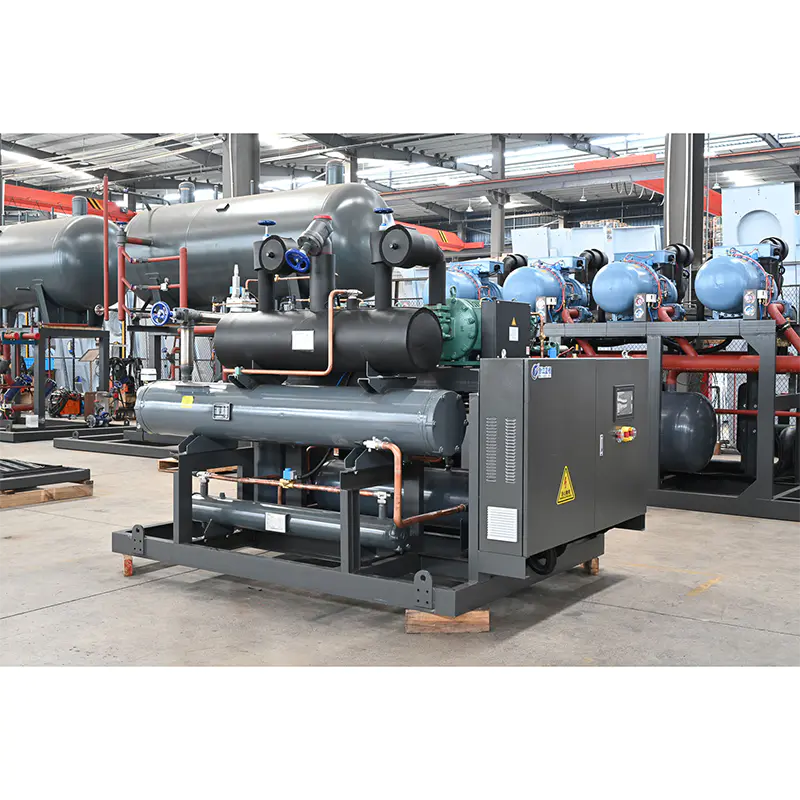

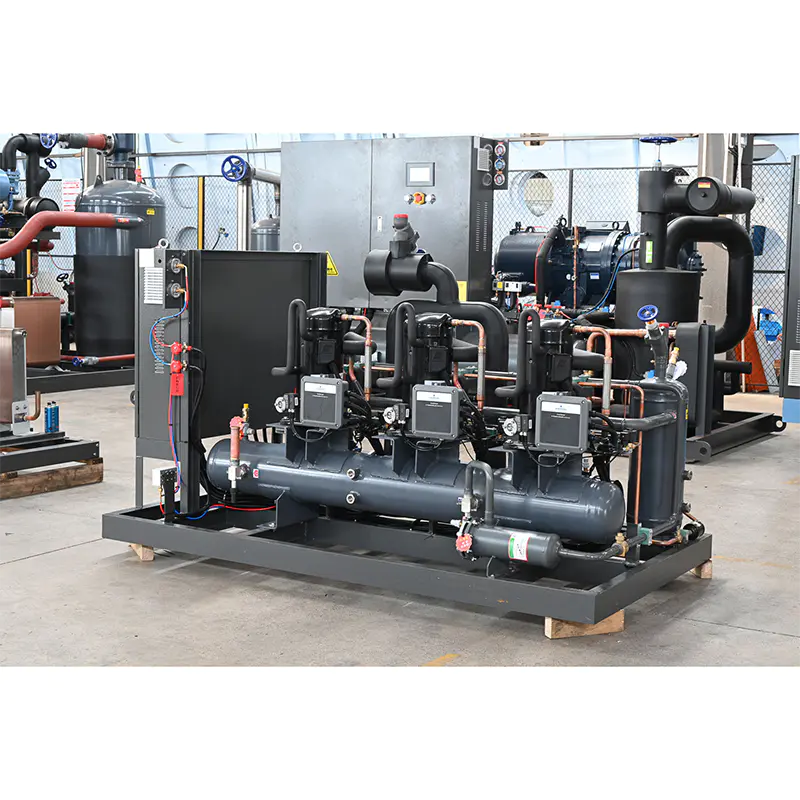

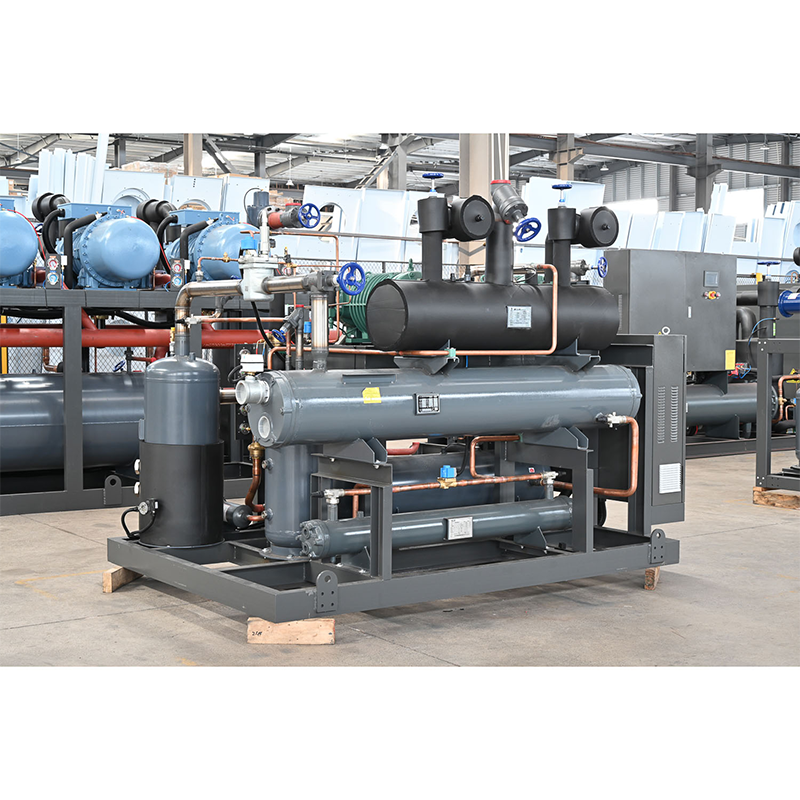

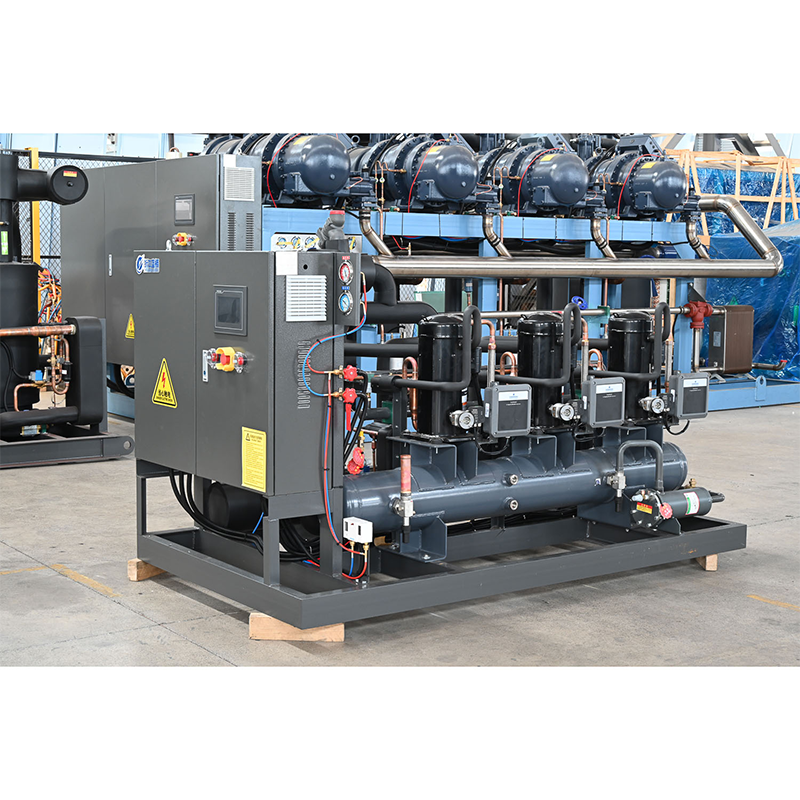

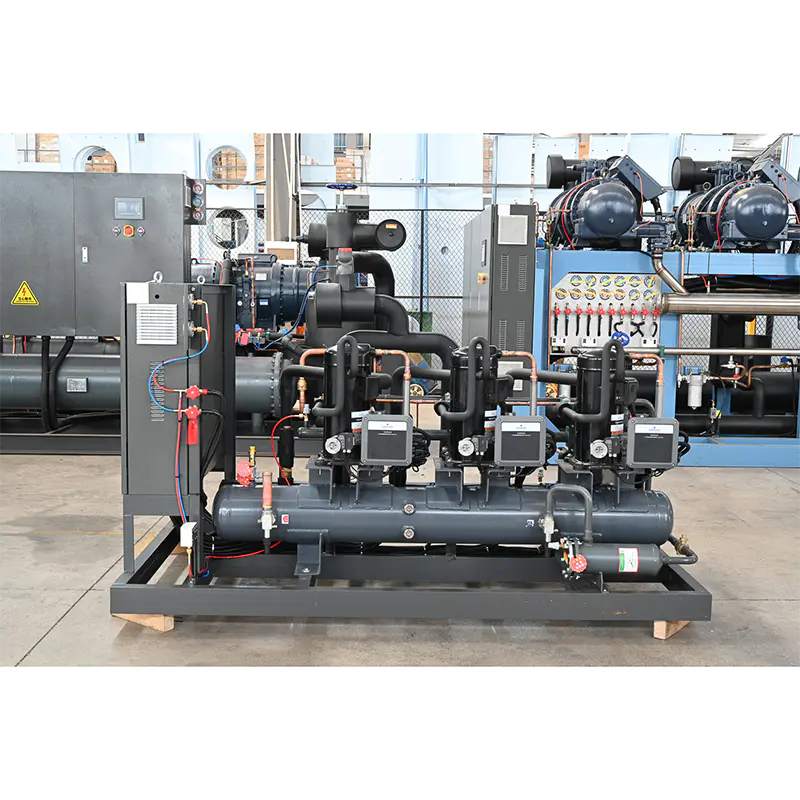

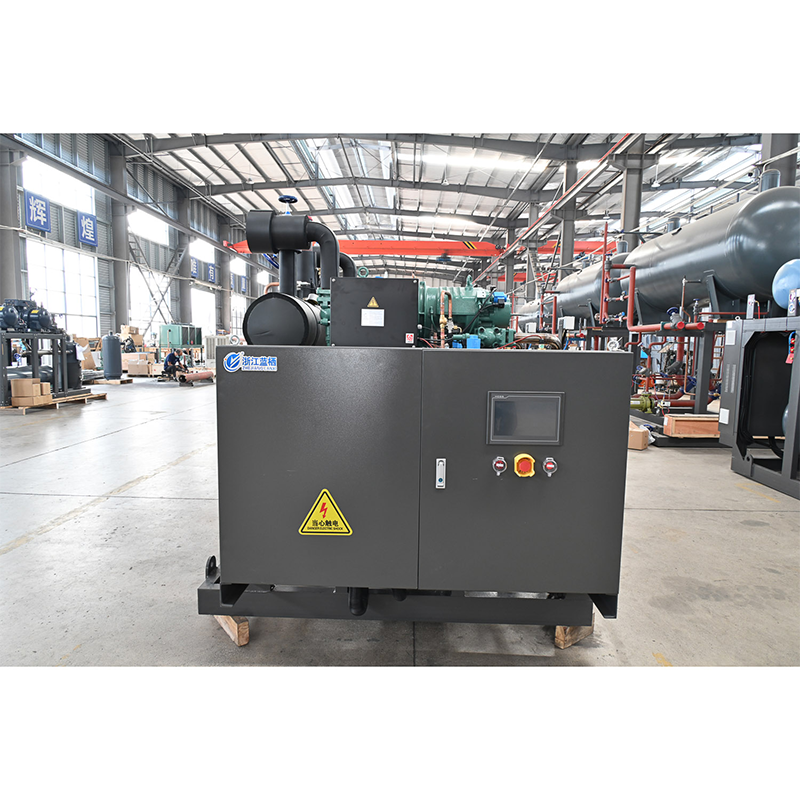

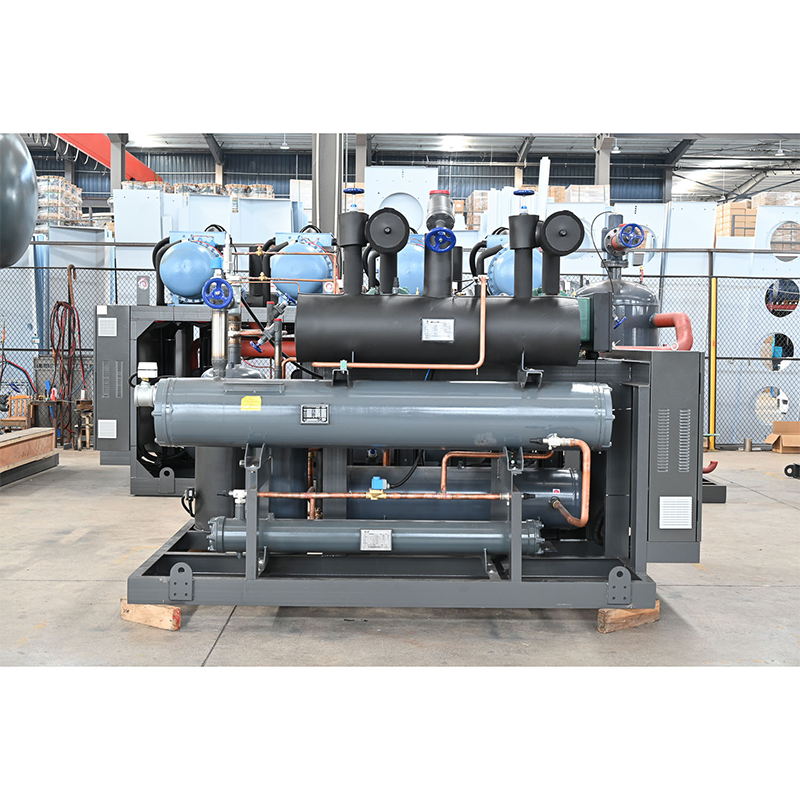

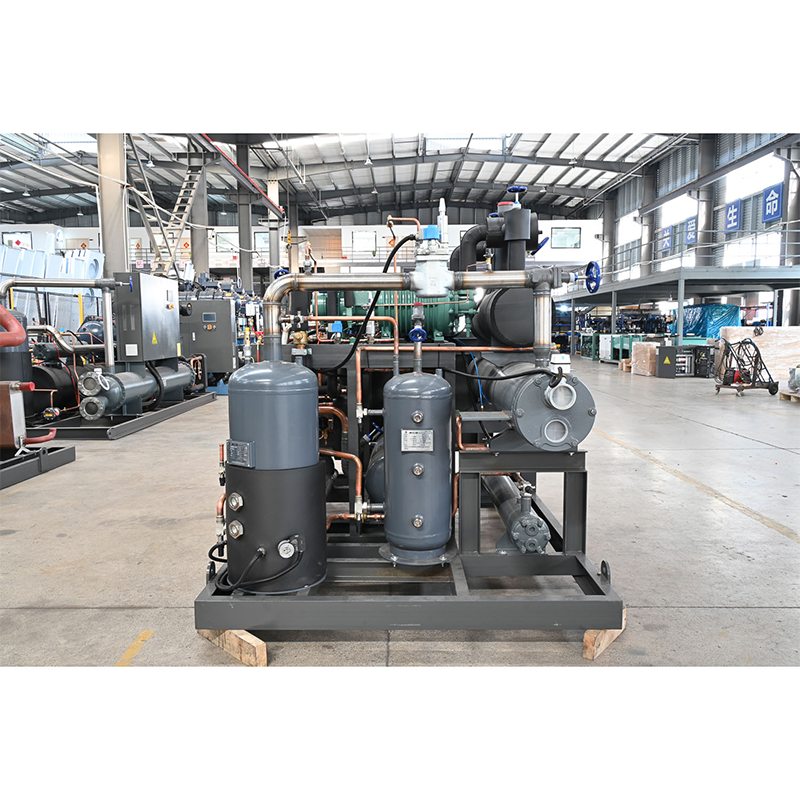

Unit Skru Suhu Tinggi RFC
Unit skru suhu tinggi RFC ialah sistem penyejukan berkecekapan tinggi yang direka khusus untuk persekitaran suhu tinggi. Ia digunakan secara meluas dalam industri seperti petrokimia, metalurgi, penjanaan kuasa, dan pemprosesan mekanikal untuk keperluan penyejukan suhu tinggi dan penyejukan industri. Unit ini menggunakan teknologi pemampat skru termaju, menawarkan kestabilan yang sangat tinggi, bunyi yang rendah dan kecekapan tenaga yang sangat baik. Ciri utama unit skru suhu tinggi RFC ialah keupayaannya untuk mengekalkan prestasi penyejukan yang sangat baik dalam persekitaran suhu tinggi, memberikan sokongan penyejukan yang stabil untuk pelbagai proses perindustrian.
Unit skru suhu tinggi RFC dilengkapi dengan pemampat berprestasi tinggi yang menggunakan teknologi peneraju industri untuk meningkatkan kecekapan penyejukan. Ia mengurangkan penggunaan tenaga sambil memanjangkan hayat perkhidmatan peralatan. Unit ini juga dilengkapi dengan sistem kawalan pintar yang boleh memantau parameter operasi dalam masa nyata dan melaraskan status operasi secara automatik berdasarkan variasi beban, mengoptimumkan prestasi penyejukan dan kecekapan tenaga. Dengan teknologi kawalan canggih, pengguna boleh memantau status operasi peralatan pada bila-bila masa, memastikan kestabilan dan kecekapan tinggi di bawah sebarang keadaan kerja.
Pengenalan Parameter Peralatan
Paparan Terperinci
Hubungi Kami
Pengenalan Parameter Peralatan
| Model Unit | Cam.Model (RFC) | Com, Cuartity | Pemeluwapan suhu,(℃） | Suhu Penyejatan. (℃) | takungan (L) | Paip bekalan (mm） | sedutan paip (mm） | Outiet Gas paip (mm） | cecair paip masuk (mm） | Dimensi(mm) (LxW×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapasiti Penyejukan/Kuasa lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-40H | SLG120 -40 (40HP) | 1 | 35 | 60.0 | 23.4 | 73.1 | 23.7 | 88.2 | 24.2 | 105.2 | 24.5 | 124.2 | 24.9 | 100 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 56.0 | 26.4 | 68.4 | 26.5 | 82.9 | 26.6 | 99.5 | 27.0 | 118.2 | 37.6 | |||||||||
| 45 | 51.5 | 27.3 | 63.3 | 27.9 | 77.4 | 28.5 | 93.7 | 29.2 | 112.1 | 29.9 | |||||||||
| LXPL-BRFCF2 -80H | 2 | 35 | 120.0 | 46.8 | 146.2 | 47.4 | 176.4 | 48.4 | 210.4 | 49.0 | 248.4 | 498 | 200 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 112.0 | 528 | 136.8 | 53.0 | 165.8 | 53.2 | 199.0 | 54.0 | 236.4 | 55.2 | |||||||||
| 45 | 103.0 | 54.6 | 126.6 | 55.8 | 352.8 | 57.8 | 187.4 | 58.4 | 224.2 | 59.8 | |||||||||
| LXPL-BRFCF3 -120H | 3 | 35 | 180.0 | 70.2 | 219.3 | 71.1 | 264.6 | 72.6 | 315.6 | 73.5 | 372.6 | 74.7 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 168.0 | 79.2 | 205.2 | 79.3 | 248.7 | 79.8 | 298.5 | 81.0 | 354.6 | 82.8 | |||||||||
| 45 | 154.5 | 81.9 | 189.9 | 83.1 | 232.2 | 85.5 | 281.1 | 87.6 | 366.3 | 89.7 | |||||||||
| LXPL-BRFCF4 -140H | 4 | 35 | 240.0 | 93.6 | 292.4 | 94.8 | 352.8 | 96.8 | 420.8 | 98.0 | 496.8 | 99.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 224.0 | 105.6 | 373.6 | 106.0 | 331.6 | 106.4 | 398.0 | 108.0 | 472.8 | 110.4 | |||||||||
| 45 | 206.0 | 109.0 | 253.2 | 111.6 | 309.6 | 114.0 | 374.8 | 116.8 | 448.4 | 119.6 | |||||||||
| LXPL-RFCF-50H | SLG140 -50 (50HP) | 1 | 35 | 69.9 | 27.3 | 85.1 | 27.5 | 1026 | 28.1 | 122.5 | 28.5 | 144.5 | 28.9 | 150 | Φ28 | Φ76 | Φ57 | Φ45 | 1800×1400×1500 |
| 40 | 65.1 | 30.7 | 79.6 | 30.8 | 96.5 | 31.0 | 115.8 | 31.4 | 137.6 | 32.1 | |||||||||
| 45 | 60.0 | 31.8 | 73.7 | 32.5 | 90.1 | 33.2 | 109.1 | 33.9 | 130.5 | 34.8 | |||||||||
| LXPL-BRFCF2 -100H | 2 | 35 | 139.8 | 54.6 | 170.2 | 55.0 | 205.2 | 56.2 | 245.0 | 57.0 | 289.0 | 57.8 | 200 | Φ35 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 130.2 | 61.4 | 159.2 | 61.6 | 193.0 | 62.0 | 231.6 | 62.8 | 275.2 | 64.2 | |||||||||
| 45 | 120.0 | 63.6 | 147.4 | 65.0 | 180.2 | 66.4 | 218.2 | 67.8 | 261.0 | 69.6 | |||||||||
| LXPL-BRFCF3 -150H | 3 | 35 | 209.7 | 81.9 | 255.3 | 82.5 | 307.8 | 84.3 | 367.5 | 85.5 | 433.5 | 86.7 | 250 | Φ45 | Φ108 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 1953 | 92.1 | 238.8 | 92.4 | 289.5 | 93.0 | 347.4 | 94.2 | 412.8 | 96.3 | |||||||||
| 45 | 180.0 | 95.4 | 221.1 | 97.5 | 270.3 | 99.6 | 327.3 | 101.7 | 391.5 | 104.4 | |||||||||
| LXPL-BRFCF4 -200H | 4 | 35 | 279.6 | 109.2 | 340.4 | 110.0 | 410.4 | 112.4 | 490.0 | 114.0 | 578.0 | 1156 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 260.4 | 1228 | 318.4 | 123.2 | 386.0 | 124.0 | 463.2 | 125.6 | 550.4 | 128.4 | |||||||||
| 45 | 240.0 | 127.2 | 294.8 | 130.0 | 360.4 | 1328 | 436.4 | 1356 | 522.0 | 139.2 | |||||||||
| LXPL-RFCF-60H | SLG160 -60 (60HP) | 1 | 35 | 77.1 | 30.1 | 93.9 | 30.4 | 113.2 | 31.0 | 135.2 | 35.1 | 159.5 | 31.9 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×2000×1700 |
| 40 | 71.9 | 33.8 | 87.8 | 34.0 | 106.5 | 34.2 | 127.8 | 34.6 | 151.9 | 35.4 | |||||||||
| 45 | 662 | 35.0 | 81.4 | 358 | 99.4 | 36.7 | 120.3 | 37.5 | 144.0 | 38.4 | |||||||||
| LXPL-BRFCF2 -120H | 2 | 35 | 154.2 | 602 | 187.8 | 60.8 | 226.4 | 620 | 270.4 | 63.0 | 319.0 | 638 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 143.8 | 67.6 | 175.6 | 68.0 | 2130 | 68.4 | 255.6 | 692 | 3038 | 70.8 | |||||||||
| 45 | 132.4 | 70.0 | 162.8 | 71.6 | 198.8 | 73.4 | 240.6 | 75.0 | 288.0 | 76.8 | |||||||||
| LXPL-BRFCF3 -180H | 3 | 35 | 231.3 | 90.3 | 281.7 | 91.2 | 3396 | 930 | 4056 | 94.5 | 478.5 | 95.7 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 215.7 | 101.4 | 263.4 | 102.0 | 319.5 | 102.6 | 383.4 | 103.8 | 455.1 | 106.2 | |||||||||
| 45 | 198.6 | 105.0 | 244.2 | 107.4 | 298.2 | 110.1 | 360.9 | 112.5 | 4320 | 115.2 | |||||||||
| LXPL-BRFCF4 -240H | 4 | 35 | 308.4 | 120.4 | 375.6 | 121.6 | 452.8 | 124.0 | 540.8 | 126.0 | 638.0 | 127.6 | 350 | Φ57 | Φ108 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 287.6 | 135.2 | 351.2 | 136.0 | 426.0 | 136.8 | 511.2 | 138.4 | 607.6 | 141.6 | |||||||||
| 45 | 264.8 | 140.0 | 325.6 | 143.2 | 397.6 | 146.8 | 481.2 | 150.0 | 576.0 | 153.6 | |||||||||
| Model Unit | Com.Model (RFC) | Com. Cuartity | Pemeluwapan temp. (℃) | Suhu Penyejatan. (℃) | simpanan (L) | Bekalan paip (mm) | sedutan paip (mm) | Outiet Gas paip (mm) | cecair paip masuk (mm) | Dimensi (mm) (L×W×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapasiti Ccoling/Input Kuasa(kw) | |||||||||||||||||||
| LXPL-RFCF-40H | SLG190 -65 (65HP) | 1 | 35 | 97.4 | 37.6 | 118.1 | 38.0 | 143.1 | 38.8 | 170.8 | 39.4 | 201.5 | 39.9 | 150 | Φ35 | Φ76 | Φ45 | Φ45 | 2200×1500×1700 |
| 40 | 90.8 | 42.3 | 111.0 | 42.5 | 134.6 | 42.7 | 161.5 | 43.3 | 191.9 | 44.3 | |||||||||
| 45 | 83.6 | 43.8 | 102.8 | 44.8 | 125.6 | 45.8 | 152.1 | 46.9 | 182.0 | 48.0 | |||||||||
| LXPL-BRFCF2 -130H | 2 | 35 | 194.8 | 75.2 | 237.4 | 76.0 | 286.2 | 77.6 | 341.6 | 78.8 | 403.0 | 79.8 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 181.6 | 84.6 | 222.0 | 85.0 | 269.6 | 85.4 | 323.0 | 86.6 | 383.8 | 88.6 | |||||||||
| 45 | 167.2 | 87.6 | 205.6 | 896 | 251.2 | 91.6 | 304.2 | 93.8 | 364.0 | 96.0 | |||||||||
| LXPL-BRFCF3 -195H | 3 | 35 | 292.2 | 112.8 | 356.1 | 114.0 | 429.3 | 116.4 | 512.4 | 118.2 | 604.5 | 119.7 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000×1800×1700 | |
| 40 | 272.4 | 126.9 | 333.0 | 127.5 | 403.8 | 128.1 | 484.5 | 129.9 | 575.7 | 132.9 | |||||||||
| 45 | 250.8 | 131.4 | 308.4 | 134.4 | 376.8 | 137.4 | 456.3 | 140.7 | 546.0 | 144.0 | |||||||||
| LXPL-BRFCF4 -260H | 4 | 35 | 389.6 | 150.4 | 474.8 | 152.0 | 572.4 | 1552 | 6832 | 157.6 | 806.0 | 159.6 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 363.2 | 169.2 | 444.0 | 170.0 | 538.4 | 170.8 | 646.0 | 173.2 | 767.6 | 177.2 | |||||||||
| 45 | 334.4 | 175.2 | 411.2 | 179.2 | 502.4 | 183.2 | 608.4 | 187.6 | 728.0 | 192.0 | |||||||||
| LXPL-RFCF-70H | SLG210 -70 (70HP) | 1 | 35 | 103.4 | 40.3 | 125.9 | 40.7 | 151.8 | 41.6 | 181.2 | 422 | 213. | 42.8 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 96.3 | 45.5 | 117.7 | 45.6 | 142.8 | 45.8 | 171.3 | 46.4 | 203.5 | 47.5 | |||||||||
| 45 | 88.7 | 47.0 | 109.0 | 48.0 | 133.2 | 49.1 | 161.3 | 50.2 | 193.0 | 51.5 | |||||||||
| LXPL-BRFCF2 -140H | 2 | 35 | 206.8 | 80.6 | 251.8 | 81.4 | 303.6 | 83.2 | 362.4 | 84.4 | 427.4 | 85.6 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 192.6 | 90.8 | 235.4 | 91.2 | 285.6 | 91.6 | 342.6 | 92.8 | 407.0 | 95.0 | |||||||||
| 45 | 177.4 | 94.0 | 218.0 | 96.0 | 266.4 | 98.2 | 322.6 | 100.4 | 386.0 | 103.0 | |||||||||
| LXPL-BRFCF3 -210H | 3 | 35 | 310.2 | 120.9 | 377.7 | 122.1 | 455.4 | 124.8 | 543.6 | 126.6 | 641.1 | 128.4 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000×1800×1700 | |
| 40 | 288.9 | 136.2 | 353.1 | 136.8 | 428.4 | 137.4 | 713.9 | 139.2 | 610.5 | 142.5 | |||||||||
| 45 | 266.1 | 141.0 | 327.0 | 144.0 | 399.6 | 147.3 | 483.9 | 150.6 | 579.0 | 154.5 | |||||||||
| LXPL-BRFCF4 -280H | 4 | 35 | 413.6 | 161.2 | 503.6 | 162.8 | 607.2 | 166.4 | 724.8 | 168.8 | 854.8 | 171.2 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 385.2 | 181.6 | 470.8 | 182.4 | 571.2 | 83.2 | 685.2 | 185.6 | 814.0 | 190.0 | |||||||||
| 45 | 354.8 | 188.0 | 436.0 | 192.0 | 532.8 | 196.4 | 645.2 | 200.8 | 772.0 | 206.0 | |||||||||
| LXPL-RFCF-80H | SLG230 -80 (80HP) | 1 | 35 | 115.7 | 45.1 | 140.9 | 45.6 | 1698 | 46.5 | 202.7 | 47.2 | 239.2 | 47.9 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 107.8 | 50.8 | 131.7 | 51.0 | 1598 | 51.2 | 191.7 | 51.9 | 2278 | 53.1 | |||||||||
| 45 | 99.2 | 52.5 | 122.0 | 53.8 | 149. | 55.0 | 180.5 | 562 | 216.0 | 57.6 | |||||||||
| LXPL-BRFCF2 -160H | 2 | 35 | 231.4 | 90.2 | 281.8 | 91.2 | 339.6 | 93.0 | 405.4 | 94.4 | 478.4 | 958 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 215.6 | 1016 | 263.4 | 102.0 | 319.6 | 102.4 | 383.4 | 103.8 | 455.6 | 106.2 | |||||||||
| 45 | 198.4 | 105.0 | 244.0 | 107.6 | 298.2 | 110.0 | 361.0 | 112.4 | 432.0 | 115.2 | |||||||||
| LXPL-BRFCF3 -240H | 3 | 35 | 347.1 | 135.3 | 422.7 | 136.8! | 509.4 | 139.54 | 608.1 | 141.6 | 717.6 | 143.7 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 323.4 | 152.4 | 395.1 | 153.0 | 479.4 | 153.6 | 575.1 | 155.7 | 683.4 | 159.3 | |||||||||
| 45 | 297.6 | 157.5 | 366.0 | 161.4 | 447.3 | 1650 | 541.5 | 168.6 | 648.0 | 172.8 | |||||||||
| LXPL-BRFCF4 -320H | 4 | 35 | 462.8 | 180.4 | 536.6 | 182.4 | 679.2 | 186.0 | 810.8 | 188.8 | 956.8 | 191.6 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4500×2000×1800 | |
| 40 | 431.2 | 203.2 | 5268 | 204.0 | 639.2 | 204.8 | 7668 | 207.6 | 911.2 | 212.4 | |||||||||
| 45 | 396.8 | 210.0 | 488.0 | 215.2 | 596.4 | 220.0 | 722.0 | 224.8 | 864.0 | 230.4 | |||||||||
| Model Unit | Com.Model (RFC) | Com, Cuartity | Pemeluwapan temp. (℃） | Suhu Penyejatan. (℃) | takungan (L) | Paip bekalan (mm) | sedutan pipe (mm) | Outiet Gas (mm) | cecair paip masuk (mm) | Dimensi(mm) (LxW×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapasiti Penyejukan/Kuasa lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-90H | SLG250 -90 (90HP) | 1 | 35 | 123.0 | 48.0 | 149.9 | 48.5 | 180.7 | 49.5 | 215.1 | 50.3 | 2554 | 51.0 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 114.7 | 54.0 | 140.1 | 54.3 | 170.0 | 54.5 | 203.9 | 55.3 | 2423 | 56.5 | |||||||||
| 45 | 105.5 | 55.9 | 129.8 | 57.2 | 158.6 | 58.5 | 192.0 | 59.8 | 229.8 | 61.3 | |||||||||
| LXPL-BRFCF2 -180H | 2 | 35 | 246.0 | 96.0 | 299.8 | 97.0 | 361.4 | 99.0 | 431.4 | 100.6 | 508.8 | 102.0 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 229.4 | 108.0 | 280.2 | 108.6 | 340.0 | 109.0 | 407.8 | 110.6 | 484.6 | 113.0 | |||||||||
| 45 | 211.0 | 111.8 | 258.0 | 114.4 | 317.2 | 117.0 | 384.0 | 119.6 | 4596 | 122.6 | |||||||||
| LXPL-BRFCF3 -270H | 3 | 35 | 369.0 | 144.0 | 449.7 | 145.5 | 542.1 | 148.5 | 647.1 | 150.9 | 7632 | 153.0 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 344.1 | 162.0 | 420.3 | 162.9 | 510.0 | 163.5 | 611.7 | 165.9 | 726.9 | 169.5 | |||||||||
| 45 | 316.5 | 167.6 | 389.4 | 171.6 | 475.8 | 175.5 | 576.0 | 179.4 | 689.4 | 183.9 | |||||||||
| LXPL-BRFCF4 -360H | 4 | 35 | 492.0 | 1920 | 599.6 | 194.0 | 722.8 | 198.0 | 862.8 | 201.2 | 1017.6 | 204.0 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4500×2000×1900 | |
| 40 | 458.8 | 216.0 | 560.4 | 217.2 | 680.0 | 218.0 | 815.6 | 221.2 | 9692 | 226.0 | |||||||||
| 45 | 422.0 | 2236 | 519.2 | 228.8 | 634.4 | 234.0 | 768.0 | 2392 | 919.2 | 245.2 | |||||||||
| LXPL-RFCF -100H | SLG290 -100 (100HP) | 1 | 35 | 145.2 | 56.6 | 176.9 | 57.2 | 213.2 | 58.4 | 254.5 | 59.3 | 300.2 | 60.1 | 200 | Φ36 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 135.3 | 63.7 | 165.4 | 64.0 | 200.5 | 64.3 | 240.7 | 65.2 | 285.9 | 66.7 | |||||||||
| 45 | 124.5 | 66.0 | 153.2 | 67.5 | 187.2 | 69.0 | 226.6 | 70.5 | 271.1 | 72.3 | |||||||||
| LXPL-BRFCF2 -200H | 2 | 35 | 290.4 | 113.2 | 353.8 | 114.4 | 426.4 | 116.8 | 5090 | 118.6 | 600.4 | 120.2 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2000×1800 | |
| 40 | 270.6 | 127.4 | 330.8 | 128.0 | 401.0 | 128.6 | 481.4 | 130.4 | 571.8 | 133.4 | |||||||||
| 45 | 249.0 | 132.0 | 306.4 | 135.0 | 374.4 | 138.0 | 453.2 | 141.0 | 542.2 | 144.6 | |||||||||
| LXPL-BRFCF3 -300H | 3 | 35 | 435.6 | 1698 | 530.7 | 171.6 | 639.6 | 175.2 | 763.5 | 177.9 | 900.6 | 180.3 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 405.9 | 191.1 | 496.2 | 192.0 | 601.5 | 192.9 | 722.1 | 195.6 | 857.7 | 200.1 | |||||||||
| 45 | 373.5 | 198.0 | 459.6 | 202.5 | 561.6 | 207.0 | 679.8 | 211.5 | 813.3 | 216.9 | |||||||||
| LXPL-BRFCF4 -400H | 4 | 35 | 580.8 | 226.4 | 707.6 | 228.8 | 852.8 | 233.6 | 1018.0 | 237.2 | 1200.8 | 240.4 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 541.2 | 254.8 | 661.6 | 256.0 | 802.0 | 257.2 | 962.8 | 260.8 | 1143.6 | 266.8 | |||||||||
| 45 | 501.6 | 264.0 | 6128 | 270.0 | 748.8 | 276.0 | 906.4 | 282.0 | 1084.4 | 289.2 | |||||||||
| LXPL-RFCF -120H | SLG350 -120 (120HP) | 1 | 35 | 177.2 | 69.1 | 2158 | 69.8 | 260.2 | 71.3 | 310.6 | 72.4 | 366.4 | 73.4 | 250 | Φ57 | Φ89 | Φ76 | Φ45 | 2400×1600×1700 |
| 40 | 165.3 | 77.8 | 201.8 | 78.1 | 244.7 | 78.5 | 293.7 | 79.6 | 348.9 | 81.4 | |||||||||
| 45 | 152.0 | 80.5 | 186.9 | 82.4 | 228.4 | 84.2 | 276.5 | 86.1 | 330.9 | 88.2 | |||||||||
| LXPL-BRFCF2 -240H | 2 | 35 | 354.4 | 138.2 | 431.6 | 139.6 | 520.4 | 1426 | 621.2 | 144.8 | 732.8 | 146.8 | 400 | Φ76 | Φ108 | Φ89 | Φ76 | 2400×2000×1800 | |
| 40 | 330.4 | 1556 | 403.6 | 156.2 | 489.4 | 157.0 | 587.4 | 1592 | 697.8 | 162.8 | |||||||||
| 45 | 304.0 | 161.0 | 3738 | 164.8 | 456.8 | 168.4 | 553.0 | 172.2 | 661.8 | 176.4 | |||||||||
| LXPL-BRFCF3 -360H | 3 | 35 | 531.6 | 207.3 | 647.4 | 209.4 | 780.6 | 2139 | 931.8 | 217.2 | 1099.2 | 220.2 | 500 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 495.6 | 2334 | 632.4 | 234.3 | 734.1 | 235.5 | 881.1 | 2338 | 1046.7 | 244.2 | |||||||||
| 45 | 456.0 | 241.5 | 560.1 | 247.2 | 6852 | 2526 | 829.5 | 258.3 | 992.7 | 264.6 | |||||||||
| LXPL-BRFCF 4 -480H | 4 | 35 | 7088 | 376.4 | 863.2 | 279.2 | 1040.8 | 285.2 | 242.4 | 289.6 | 1465.6 | 293.6 | 600 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 660.8 | 311.2 | 807.2 | 312.4 | 978.8 | 314.0 | 1174.8 | 318.4 | 1395.6 | 3256 | |||||||||
| 45 | 608.0 | 322.0 | 747.6 | 329.6 | 913.6 | 3368 | 1106.0 | 344.4 | 323.6 | 3528 | |||||||||
| Model Unit | Com.Model (RFC) | Com. Cuartity | Pemeluwapan temp. (℃) | Suhu Penyejatan. (℃) | takungan (L) | Bekalan paip (mm) | sedutan paip (mm) | Outiet Gas pipe (mm) | cecair paip masuk (mm) | Dimensi(mm) (L×W×H) | ||||||||||
| -15 | -10 | -5 | 0 | 5 | ||||||||||||||||
| Kapasiti Penyejukan/Kuasa lnput(kw) | ||||||||||||||||||||
| LXPL-RFCF -140H | SLG420 -140 (140HP) | 1 | 35 | 206.7 | 80.6 | 251.8 | 81.5 | 303.6 | 83.2 | 362.3 | 84.4 | 427.4 | 85.6 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 | |
| 40 | 192.7 | 90.7 | 235.4 | 91.1 | 285.5 | 91.6 | 342.6 | 92.8 | 407.1 | 94.9 | ||||||||||
| 45 | 177.3 | 93.9 | 218.1 | 96.1 | 266.5 | 98.2 | 322.6 | 100.4 | 386.0 | 102.9 | ||||||||||
| LXPL-BRFCF2 -280H | 2 | 35 | 413.4 | 161.2 | 503.6 | 163.0 | 607.2 | 166.4 | 724.6 | 168.8 | 854.8 | 171.2 | 400 | Φ57 | Φ108 | Φ89 | Φ76 | 2600×2000×1900 | ||
| 40 | 385.4 | 181.4 | 470.8 | 182.2 | 571.0 | 183.2 | 6852 | 185.6 | 814.2 | 1898 | ||||||||||
| 45 | 354.6 | 187.8 | 436.2 | 192.2 | 533.0 | 1964 | 645.2 | 200.8 | 772.0 | 2058 | ||||||||||
| LXPL-BRFCF3 -420H | 3 | 35 | 620.1 | 241.8 | 755.4 | 244.5 | 910.8 | 249.6 | 1086.9 | 253.2 | 1417.2 | 256.8 | 600 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | ||
| 40 | 578.1 | 272.1 | 706.2 | 273.3 | 856.5 | 274.8 | 1027.8 | 378.4 | 1221.3 | 284.7 | ||||||||||
| 45 | 531.9 | 281.7 | 654.3 | 288.3 | 799.5 | 294.6 | 967.8 | 301.2 | 1158.0 | 308.7 | ||||||||||
| LXPL-BRFCF4 -560H | 4 | 35 | 8268 | 322.4 | 1007.2 | 326.0 | 1214.4 | 332.8 | 1449.2 | 337.6j | 709.66 | 342.4 | 800 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | ||
| 40 | 770.8 | 3268 | 941.6 | 364.4 | 142.0 | 366.4 | 1370.4 | 371.2 | 628.4 | 3796 | ||||||||||
| 45 | 7092 | 375.6 | 8724 | 384.4 | 1066.0 | 392.8 | 1290.4 | 401.6 | 1544.0 | 411.6 | ||||||||||
| LXPL-RFCF -180H | SLG520 -180 (180HP) | 1 | 35 | 255.9 | 99.8 | 311.7 | 100.9 | 375.8 | 103.0 | 448.6 | 104.5 | 529.2 | 106.0 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1700×1800 | |
| 40 | 238.6 | 112.3 | 291.5 | 112.8 | 353.5 | 113.4 | 424.2 | 114.9 | 504.0 | 117.5 | ||||||||||
| 45 | 219.5 | 116.3 | 270.0 | 119.0 | 3299 | 121.6 | 3994 | 124.3 | 477.9 | 127.5 | ||||||||||
| LXPL-BRFCF2 -360H | 2 | 35 | 511.8 | 199.6 | 6234 | 201.8 | 751.6 | 206.0 | 897.2 | 209.0 | 1058.4 | 212.0 | 500 | Φ76 | Φ133 | Φ89 | Φ76 | 3000×1800×1800 | ||
| 40 | 477.2 | 224.6 | 583.0 | 225.6 | 707.0 | 226.8 | 848.4 | 229.8 | 100.8 | 235.0 | ||||||||||
| 45 | 439.0 | 232.6 | 540.0 | 238.0 | 659.8 | 243.2 | 798.8 | 248.6 | 955.8 | 255.0 | ||||||||||
| LXPL-BRFCF3 -540H | 3 | 35 | 767.7 | 299.4 | 935.1 | 302.7 | 127.4 | 309.0 | 1345.8 | 313.5 | 1587.6 | 318.0 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | ||
| 40 | 7158 | 336.9 | 874.5 | 338.4 | 1060.5 | 340.2 | 272.6 | 344.1 | 1512.0 | 352.5 | ||||||||||
| 45 | 658.5 | 348.9 | 810.0 | 357.0 | 989.7 | 364.8 | 1198.2 | 372.9 | 1433.7 | 382.5 | ||||||||||
| LXPL-BRFCF4 -720H | 4 | 35 | 1023.6 | 399.2 | 1246.8 | 403.6 | 1503.2 | 412.0 | 1794.4 | 418.0 | 2116.8 | 424.0 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | ||
| 40 | 954.4 | 449.2 | 1166.0 | 451.2 | 1414.0 | 453.6 | 1696.8 | 459.6 | 2016.0 | 470.0 | ||||||||||
| 45 | 878.0 | 465.2 | 1080.0 | 476.0 | 1319.6 | 486.4 | 1597.6 | 497.2 | 1911.6 | 510.0 | ||||||||||
| LXPL-RFCF -210H | SLG640 -210 (210HP) | 1 | 35 | 314.4 | 122.6 | 383.0 | 123.9 | 461.7 | 126.5 | 551.1 | 128.4 | 650. | 130.2 | 350 | Φ57 | Φ108 | Φ89 | Φ76 | 2400×1700×1800 | |
| 40 | 293.1 | 138.0 | 358.1 | 138.6 | 434.3 | 1393 | 521.1 | 141.2 | 619.1 | 144.4 | ||||||||||
| 45 | 269.7 | 142.8 | 331.7 | 146.1 | 405.3 | 149.4 | 490.6 | 152.7 | 587.1 | 156.6 | ||||||||||
| LXPL-BRFCF2 -420H | 2 | 35 | 628.8 | 245.2 | 766.0 | 2478 | 9234 | 253.0 | 1102.2 | 256.8 | 1300.2 | 260.4 | 600 | Φ89 | Φ159 | Φ108 | Φ89 | 3000×1800×1800 | ||
| 40 | 586.24 | 276.0 | 7162 | 277.2 | 868.6 | 278.6 | 4042.2 | 282.4 | 12382 | 2888 | ||||||||||
| 45 | 539.4 | 2856 | 6334 | 292.2 | 810.6 | 298.8 | 981.2 | 305.4 | 1174.2 | 313.2 | ||||||||||
| LXPL-BRFCF3 630H | 3 | 35 | 943.2 | 367.8 | 1149.0 | 371.7 | 1385.1 | 379.59 | 653.3 | 385.2 | 1950.3 | 390.6 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | ||
| 40 | 879.3 | 414.0 | 1074.3 | |4158 | 1302.9 | 417.9 | 1563.3 | 423.6 | 1857.3 | 4332 | ||||||||||
| 45 | 809.1 | 428.4 | 995.1 | 438.3 | 1215.9 | 4482 | 1471.8 | 458.1 | 1761.3 | 4698 | ||||||||||
| LXPL-BRFCF4 -840H | 4 | 35 | 1257.6 | 490.4 | 1532.0 | |495.6 | 1846.8 | 506.0 | 2204.4 | 513.6 | 2600.4 | 520.8 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | ||
| 40 | 1172.4! | 552.0 | 1432.4 | 554.4 | 1737.2 | 557.2 | 2084.4 | 564.8 | 2746.4! | 577.6 | ||||||||||
| 45 | 1078.8 | 571.2 | 1326.8 | 584.4 | 1621.2 | 597.6 | 1962.4 | 610.8 | 2348.4 | 626.4 | ||||||||||
Paparan Terperinci
Hubungi Kami
TENTANG KAMI
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Sebagai China Unit Skru Suhu Tinggi RFC Pembekal dan Unit Skru Suhu Tinggi RFC Kilang,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. mengkhusus dalam penyelesaian penyejukan yang cekap, hijau, dan mampan. Dengan memanfaatkan produk berkualiti tinggi dan teknologi inovatif, kami melayani sektor makanan, farmaseutikal, kimia, dan logistik rantaian sejuk, mencipta sistem yang cekap tenaga dan mesra alam untuk pelanggan kami serta memupuk pembangunan saling menguntungkan untuk industri dan alam sekitar.
Sijil Kepujian
Berita
-
Apakah itu Penyejuk Udara Industri dan Bagaimana Ia Berfungsi dalam Sistem Penyejukan? Bayangkan sebuah bilik sejuk bersaiz sederhana yang dibina untuk menyimpan makanan sejuk beku pada suhu -22°C. Unit pemampat dan pemeluwap te...
BACA LANJUT -
Panduan Pemilihan Kondenser Lengkap: Pilih Pemeluwap yang Tepat untuk Sistem Perindustrian & HVAC Pemeluwap ialah komponen pemindahan haba teras yang digunakan secara meluas dalam sistem HVAC, penyejukan industri, pemprosesan kimia, p...
BACA LANJUT -
Panduan penyesuaian OEM pembekal kejuruteraan storan sejuk Apabila permintaan untuk pasaran tersegmen dalam industri rantaian sejuk luar negara meningkat, banyak pembekal dan peniaga kejuruteraan storan sejuk menyasarkan untuk mencipt...
BACA LANJUT
HUBUNGI KAMI
PAUTAN PANTAS
MAKLUMAT HUBUNGAN
- E-mel: [email protected]
- Telefon: +86-15258555916
- Alamat: 301 Punan Avenue, Pukou Street, Shengzhou City, Shaoxing City, Zhejiang Province.China
Hak Cipta © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Hak Cipta Terpelihara.
浙ICP备2022034605号-1
Borong Unit Skru Suhu Tinggi RFC Kilang
